- Measurement frequency
- ：10Hz～5MHz(SY-8218) 10Hz～1MHz(SY-8219)
- Max. input current
- ：±6A
- Max. input voltage
- ：±200V
- Temperature range
- ：-30℃～+150℃
Specifications
| Item | SY-320A | SY-321A | |
|---|---|---|---|

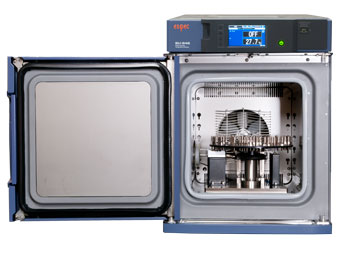

| Thermostatic chamber part | Supply voltage | AC100V 50 / 60Hz | |
| Power supply current | Maximum12.5A | Maximum21.0A | |
| Temperature range | -30℃～+150℃ | ||
| Scanner Unit Part |
Power supply | AC 100V～120V, 50 / 60Hz | |
| Power consumption | 28VA | ||
| Measurement frequency | 10Hz to 5MHz (SY-8218 connection), 10Hz to 1MHz (SY-8219 connection) | ||
| Number of measurement samples | Up to 20 | Up to 41 | |
| Maximum allowable current | ±6A | ||
| Maximum allowable voltage | ±200V | ||
| Dimensions (mm), weight |
Approx. 543W × 695L × 620H, Approx. 85kg |
Approx. 640W × 920L × 660H, Approx. 135kg |
|
| Accessories | Chamber cable SY-901, Turntable*, GP-IB cable (1m), Power cord, Instruction manual * Main unit SY-320A：SY-510, Main unit SY-321A：SY-511 |
||
* This is a type 1 specific product under the Act on the Rational Use and Proper Management of Fluorocarbons.
(Fluorocarbon Emission Control Act)

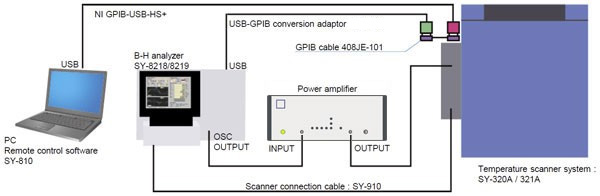

Remote control configuration

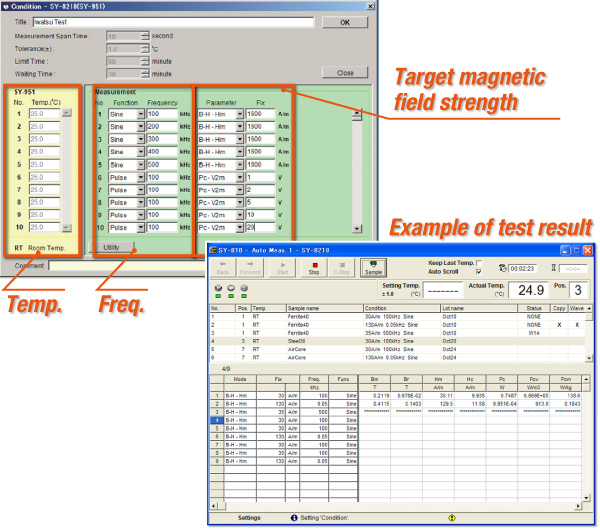

Remote control software SY-810 display example
Maintenance parts for thermostatic chamber scanner system

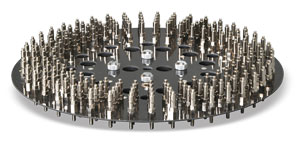

Turntable
(Table for automatic measurement with sample mounted)
SY-510(For SY-320A, Standard Accessory)
SY-511(For SY-321A, Standard Accessory

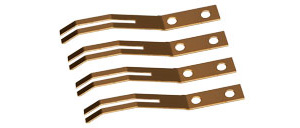

Replacement contactor
SY-512
(For SY-320A/321A, Standard Equipment)
