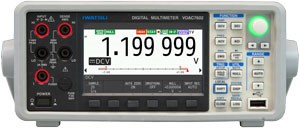

Digital Multimeter VOAC7602

Equipped with a new display that makes further use of the judgment function
  • 6 ½ -digit display
  • High-resolution 4.3-inch (109mm) LCD monitor
  • Achieves up to 30k sampling/s

Digital Multimeter VOAC7602

Easy-to-read large screen

High-resolution LCD monitor 4.3-inch 109mm

Uses a high-resolution liquid crystal display made in Japan. It is bright and has a wide viewing angle, and you can appreciate how good it is the more you use it. You can choose from two types of numeric fonts, normal (Gothic) and seven segments. In addition, you can select the background color from two modes (white or black).

Screen image

Real-time value + analog meter

Screen image

Arc scale meter + real-time value

Screen image

Real-time value + maximum, minimum, average

Screen image

Real-time value (ACV + frequency) + analog meter

Screen image

Real-time value + LIMIT judgment

Screen image

Real-time value + analog meter display + LIMIT judgment

Screen image

Trend + analog meter display + LIMIT judgment

Screen image

Histogram display + LIMIT judgment

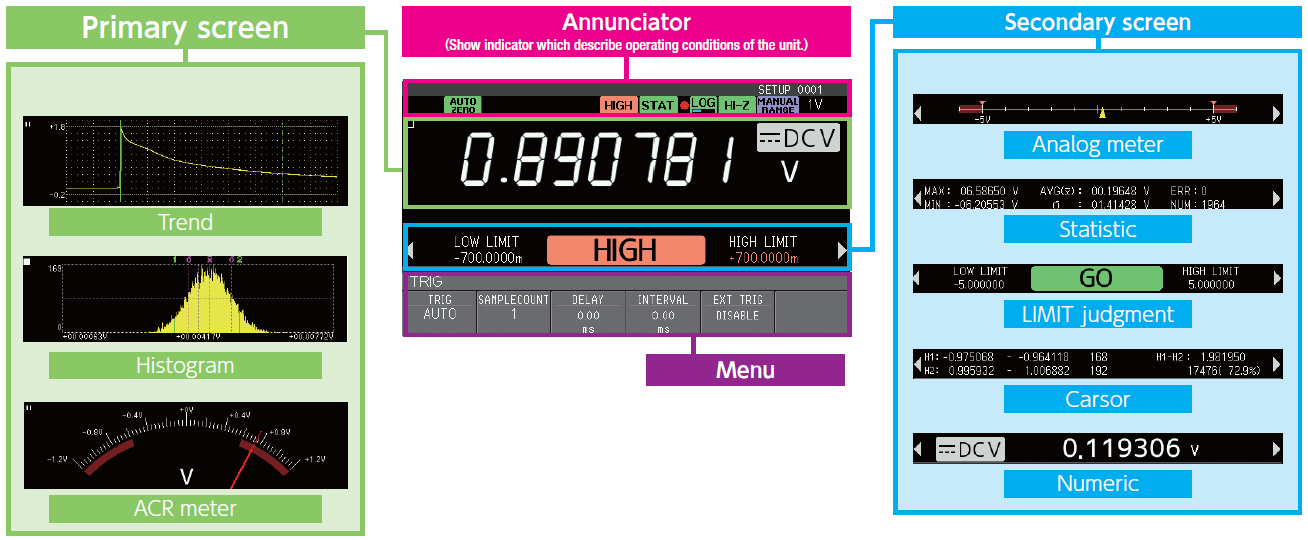

Realization of various analytical display combinations without using a PC

The primary display has multiple displays, such as numerical displays, trend charts, histogram charts, and arc scale meters. For each primary display, there are also many secondary displays, so various screen combinations can be selected according to measurement needs.

 Colorful display

A new display that makes further use of the judgment function

The large display has been made easier to see.

You can also see the display from a long distance. The device is popular because adjustment work is easy and quick.

Screen image

Unique needle display. Analog changes are simulated in digital.

In addition to being useful for judging approximations, it can be used in a variety of ways in conjunction with the judgment function.
The color of the needle changes when the judgment criterion is exceeded.

Screen image

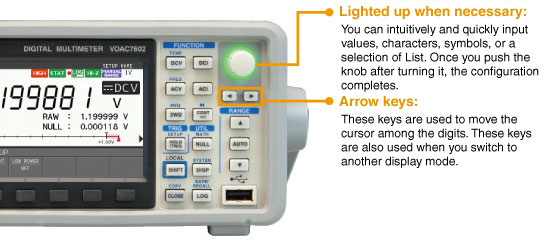

Easy to use

You can quickly and intuitively enter the necessary numbers, letters, symbols, and select from lists on the illuminated settings when needed. Turn the knob and push to confirm the settings.

The instantaneous log memory of the screen can be saved (VOAC7602 only)

Screen image

Screen copying can be completed in two actions.
The measurement state and the measurement conditions are not related at all.
You can copy the screen with two keystrokes when you need to. This function is very useful during busy measurement work without the need for troublesome settings.

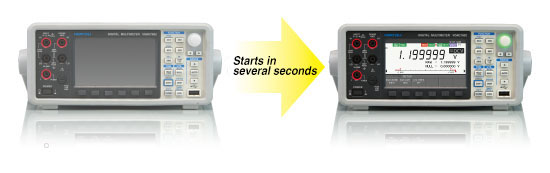

Quick Launch

The measurement can be started immediately by setting the setup information when the power is turned on.

Quick Launch Image

Large capacity 100k readings logging memory

Large capacity memory storage

With the large memory, you can retrieve more than 24 hours of 1-second data with a timestamp.
It is also always logging, so you will not forget to save data.
