What is an Arbitrary Signal Generator/Function Generator?
An arbitrary signal generator/function generator is an electronic measurement device that can output signals with any frequency, amplitude, and waveform. In electronic measurement, it is used to operate the circuit to be measured. In addition, by applying known noise to the output signal and confirming the response of the measured device, it is possible to test the durability when stress exceeds the normal performance range. IWATSU's arbitrary signal generator supports a variety of applications such as research, development, and manufacturing.

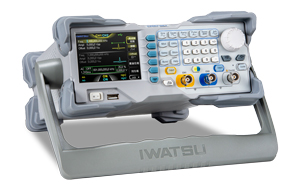

SG-4200 Series
| Model name | Analog Number of channels |
Sample Rate |
Frequency Bandwidth |
Output voltage (50Ω) |
Record length (Points) |
Digital Output |
Serial Pattern |
|---|---|---|---|---|---|---|---|
SG-4200 Series  |
2ch | 200 MS/s |
25MHz / 60MHz |
10 Vp-p |
~ 16Mpt |
－ | － |
Function Generator
Arbitrary Signal Generator
Frequency
Maximum frequency bandwidth 60MHz
Output voltage
~24Vp-p(High-Z)
Number of analog channels
2ch
Record length
~16Mpt
Built-in waveforms
A total of 160 waveforms are preset for each field, and the desired waveform can be easily output.
Harmonic output function
Harmonic applications are also supported.
