3D positioner (manufactured by PMK)

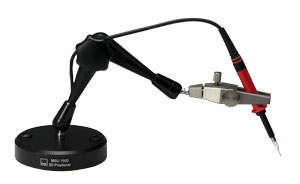

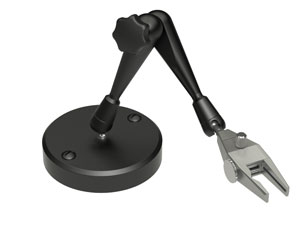

MSU1500
Mountable diameter: 5~17mm　Arm length: 200mm
Fixing method: 1.2kg steel base

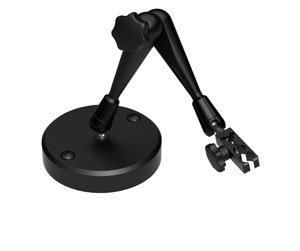

MSA100
Mountable diameter: 9mm, 11mm　Arm length: 200mm
Fixing method: 1.2kg steel base

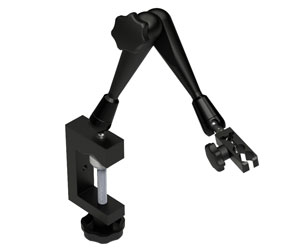

MSB40
Mountable diameter: 9mm, 11mm　Arm length: 200mm
Fixing method: Table clamp

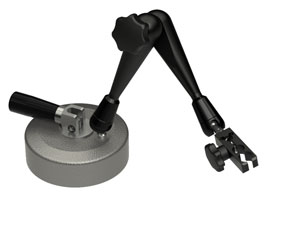

MSC85
Mountable diameter: 9mm, 11mm　Arm length: 200mm
Fixing method: Vacuum

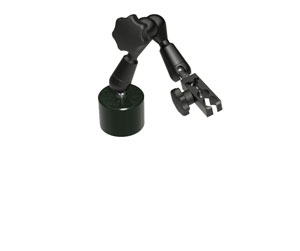

MSM130
Mountable diameter: 9mm, 11mm　Arm length: 130mm
Fixing method: Magnet

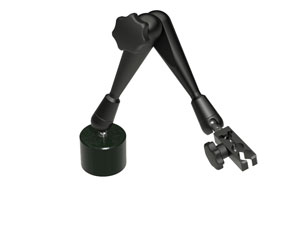

MSM200
Mountable diameter: 9mm, 11mm　Arm length: 200mm
Fixing method: Magnet

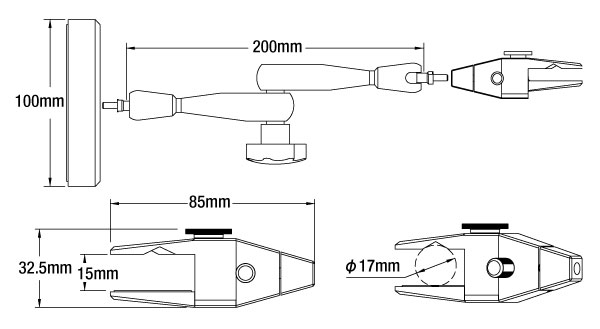

Exterior viewMSU1500

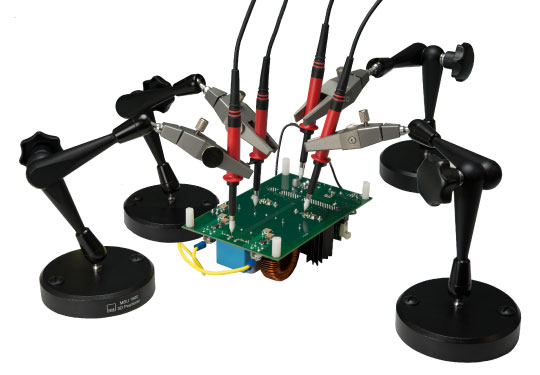

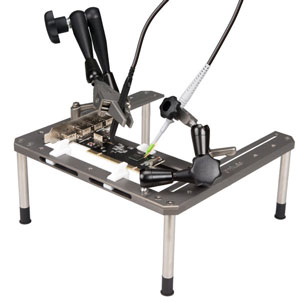

Example of combination with printed circuit board fixing jig SKID

This is a jig for fixing the printed circuit board and the probe. You can select from 3 types of sizes.


Install short-type legs

Install long-type legs

When used vertically

Main unit, accessories, order information

Order number Appearance Description
MSU 1500
(893-350-006)		 Mountable diameter: 5~17mm
Arm length: 200mm
Fixing method: 1.2kg steel base
MSA 100
(893-350-001)		 Mountable diameter: 9mm, 11mm
Arm length: 200mm
Fixing method: 1.2kg steel base
MSB 40
(893-350-002)		 Mountable diameter: 9mm, 11mm
Arm length: 200mm
Fixing method: Table clamp
MSC 85
(893-350-003)		 Mountable diameter: 9mm, 11mm
Arm length: 200mm
Fixing method: Vacuum
MSM 130
(893-350-004)		 Mountable diameter: 9mm, 11mm
Arm length: 130mm
Fixing method: Magnet
MSM 200
(893-350-005)		 Mountable diameter: 9mm, 11mm
Arm length: 200mm
Fixing method: Magnet
STS 100
(893-100-001)		 1.2kg steel base(Φ100mm)
TIK 40
(893-100-002)		 Table clamp width40mm
VAS 85
(893-100-003)		 Vacuum type(Φ85mm)
TM 170
(893-100-004)		 Magnet type(Φ30mm)
Holding force: 170N
TM 170
(893-100-005)		 Magnet type(Φ30mm)
Holding force: 300N
STV 130
(893-200-130)		 Length: 130mm
Temperature resistance range: -40ºC~+85ºC*
* Published as general information, not guaranteed values
STV 130v2a
(893-200-13V)		 Length: 130mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values
STV 200
(893-200-200)		 Length: 200mm
Temperature resistance range: -40ºC~+85ºC*
* Published as general information, not guaranteed values
STV 200v2a
(893-200-20V)		 Length: 200mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values
HAL 512
(893-050-000)		 Mountable diameter: 9mm, 11mm
UNIHOLD
(893-090-000)		 Mountable diameter: 5~17mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values
TWINHOLD
(890-880-104)		 Two probes can be mounted at the same time
TWA-2xM6
(893-010-000)		 Two “HAL512” or
“UNIHOLD” can be connected
GAD M86
(893-000-M86)		 No image -
GAD 1/4""M6
(893-000-MI6)		 No image -
ESCH-SW7
(893-000-SW7)		 No image -

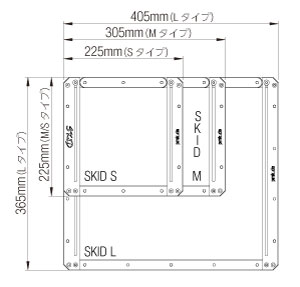

SKID S
(893-500-000)		 Size: 160mmx160mm
Height: 20mm, 100mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values
SKID M
(893-500-010)		 Size: 160mmx240mm
Height: 20mm, 100mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values
SKID L
(893-500-020)		 Size: 300mmx340mm
Height: 20mm, 100mm
Temperature resistance range: -55ºC~+150ºC*
* Published as general information, not guaranteed values

Materials

Item File name
3D positioner Manual English 893-350-00X_Manual_3D_Mess-Stative_en.pdf
SKID Datasheet English 893-500-0X0_Datasheet_Skid_en.pdf
Manual English 835-312-001_Manual PHT312-RO_en.pdf
