■ 0.8mm to 1.27 mm pin-to-pin probing possible
■ There are two HF adjustment locations for PMM511A
■ Adjustment Tool T
Accessories example
＜Attention＞Accessories may change due to changes in specifications.
- Probe main unit
- Instruction manual
- Spring tip 0.8mm (probe tip)
- Spring tip 0.38mm (probe tip)
- Solid tip 0.8mm (probe tip)
- Ground lead 11cm
- Ground blade 5.0
- IC-cap 0.8mm-1.27mm pitch
- Color ring 4 colors 3 pcs each
- Spring hook 5.0
- Insulator cap 5.0
- BNC adapter 5.0
- Protection cap 5.0
- Ground spring 5.0
- 2-leg positioner
- Adjustment tool

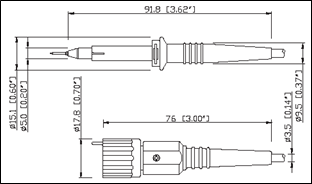

Specifications
| Model name | Attenuation | Input RC | Frequency band (MHz) | Compatible input capacity [pF] | Maximum input voltage [V] (CAT II) | Cable length [m] | |
|---|---|---|---|---|---|---|---|
| R[Ω] | C[pF] | ||||||
| PMM 511A PMM 511A-RO | 10：1 | 10M | 11 | 500 | 10～25 | 300 | 1.2 |
| PMM 512A PMM 512A-RO |
10：1 | 10M | 13.5 | 380 | 10～25 | 300 | 2 |
| PMM 513A PMM 513A-RO |
10：1 | 10M | 18 | 250 | 10～25 | 300 | 3 |
| PMM 515A PMM 515A-RO |
10：1 | 10M | 23 | 175 | 10～25 | 300 | 5 |
| PMM 516A** PMM 516A-RO** (**Discontinued) |
10：1 | - | 300 | 6 | |||
| PMM 517A** PMM 517A-RO** (**Discontinued) | 10：1 | - | 300 | 7 | |||
* “-RO” in the model name corresponds to ReadOut
