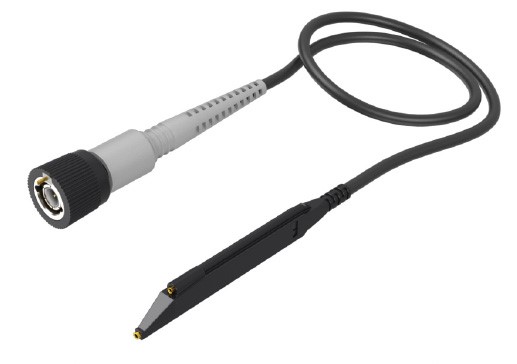

The SMP Series is a thin passive probe (manufactured by PMK) that is capable of contacting adjacent 2.54 mm pitch pins in parallel.

Voitage probe (1kV or less) SMP siries


SMP Series (manufactured by PMK)/Passive Thin End Probe Specifications

Model SMP011 SMP021 SMP051 SMP101 / SMP101-RO
Frequency bandwidth (-3dB) DC～35MHz DC～50MHz DC～250MHz DC～500MHz
Attenuation 1：1 2：1 5：1 10：1
Maximum input voltage 30Vrms
Input RC 1MΩ // 45pF 2MΩ // 40pF 5MΩ // 13.5pF 10MΩ // 7pF
Cable length 1.3m 1.3m 1.3m 1.3m
Connector BNC type

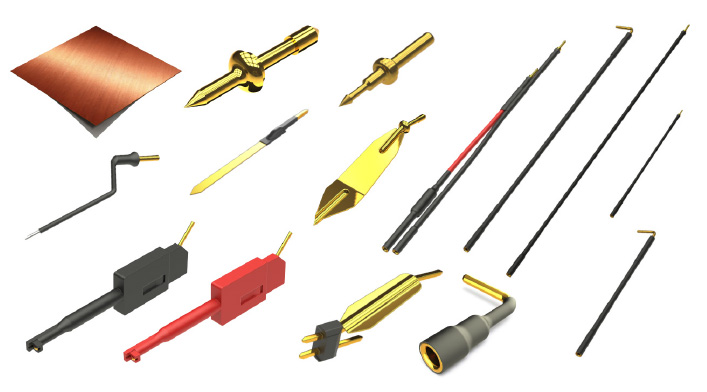

Optional accessories
