■ Cable divider (probe with probe tip set to BNC) Input: BNC, Output: BNC
■ 280MHz, 300MHz, 350MHz, 400MHz, 500MHz band
■ There are 2 HF adjustment points
Accessories example
(Accessories may change due to changes in specifications)• Cable divider main unit
• Instruction manual
• Color ring 4 colors 3 pcs each
• Adjustment tool

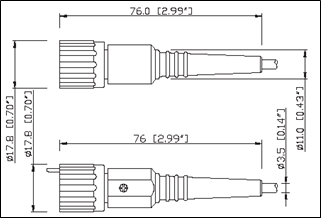

Specifications
| Model name | Attenuation | Input RC | Bandwidth [MHz] | Compatible capacity [pF] | Rise time [nsec] | Cable length [m] | Standard price (excluding tax) | |
|---|---|---|---|---|---|---|---|---|
| R[Ω] | C[pF] | |||||||
| PKT512A PKT512A-RO PKT512AS PKT512AS-RO |
10:1 | 10M | 10 | 500 | 7~25 | 0.7 | 1.2 | Please contact us |
| PKT520A PKT520A-RO PKT520AS PKT520AS-RO |
10:1 | 10M | 13 | 400 | 10~40 | 0.9 | 2.0 | |
| PKT530A PKT530A-RO PKT530AS PKT530AS-RO |
10:1 | 10M | 16 | 280 | 10~40 | 1.25 | 3.0 | |
| PKT920A PKT920A-RO PKT920AS PKT920AS-RO |
100:1 | 50M | 6 | 350 | 10~50 | 1 | 2.0 | |
| PKT930A PKT930A-RO PKT930AS PKT930AS-RO |
100:1 | 50M | 6 | 300 | 10~50 | 1.17 | 2.0 | |
- “-RO” in the model name corresponds to ReadOut
- “S” in the model name corresponds to models in which a silicon tube covers the cable cover
Characteristic graph

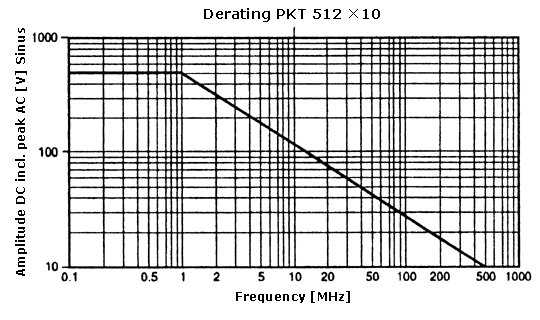

Derating PKT 512 ×10
