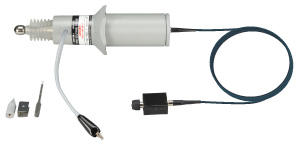

High Voltage Probe HV-P60A
HV-P60A
- Oscilloscope measurement of high voltage waveforms up to 60kV DC and 80kV single pulse
- Frequency band DC to 50MHz broadband
- Maintenance free with the use of silicon rubber. Guaranteed stable withstand voltage
High Voltage Probe HV-P60A specifications
| Item | HV-P60A | |
|---|---|---|
| Maximum input voltage | DC: 60kV, single pulse: 80kV (standard pulse wave: tip length = 1μs/tail length = 40μs) | |
| Frequency bandwidth | DC~50MHz －3dB | |
| Rise time | 7ns or less | |
| Input RC | R | 1000MΩ±5% |
| C | 5pF±2pF | |
| Attenuation | 2000: 1 ±5% | |
| Waveform distortion | ±5% (10℃ to 35℃) * However, except for ringing and overshooting | |
| Cable length | Approx. 4m | |
| Connector type | BNC type | |
| Connectable Oscilloscope input RC |
R | 1MΩ |
| C | 10pF~40pF | |
| Size | See exterior view | |
| Operating temperature/Storage temperature | -10℃~50℃ | |
| Weight | Probe main unit: Approx. 2.0kg, overall: Approx. 3.2kg (including accessories) | |
| Accessories | Output cable (including matching box), clamping bracket, tip, earth lead, adjustment screwdriver, storage bag | |
| Option | High pressure probe stand (made-to-order product) SK-301 SK-301 is used for HV-P60A/HV-P60/HV-P30A/HV-P30. Change the probe receptacle up and down (for HV-P60A/HV-P60/HV-P30A/HV-P30) before mounting. |
|
High voltage probe HV-P60A maximum input voltage and frequency (sine wave)
A passive probe that connects to an oscilloscope to measure high voltage waveforms. The frequency range is DC-50MHz, the maximum input voltage is DC60kV, and the attenuation ratio is 2000:1.

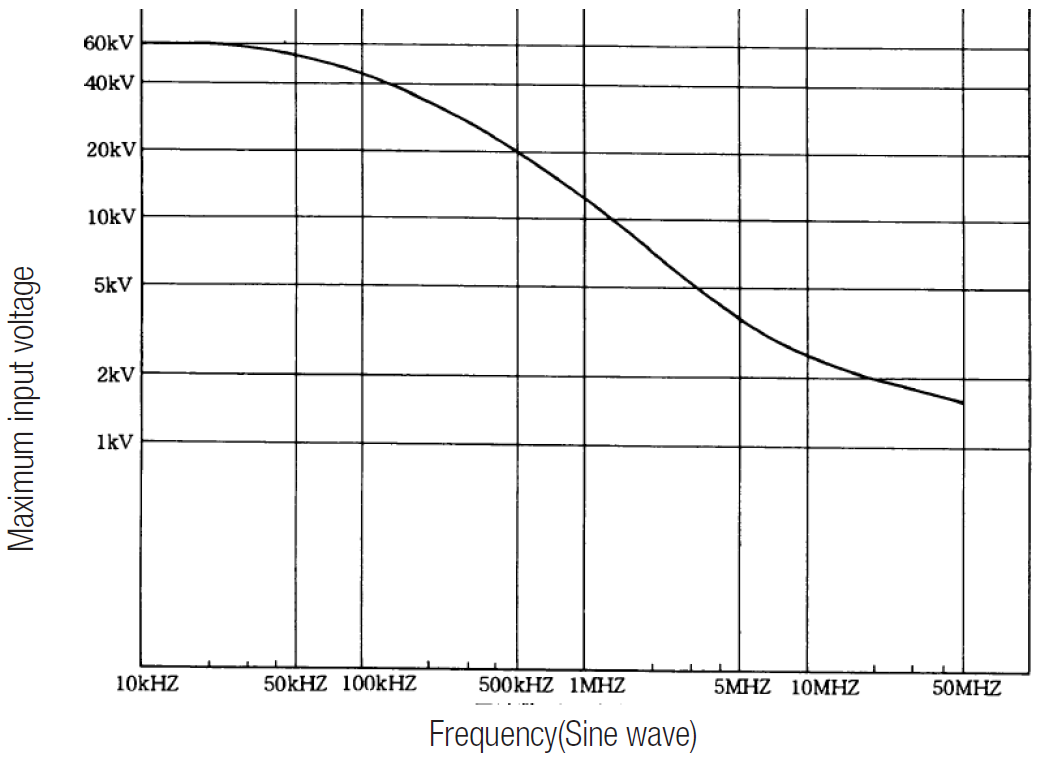

Characteristic curve
![Maximum input voltage and frequency (sine wave) [HV-P60]](/wp-content/uploads/2022/12/tme-accessories-voltage_probe-03_04-1-img02.gif)
Maximum input voltage and frequency (sine wave) [HV-P60]

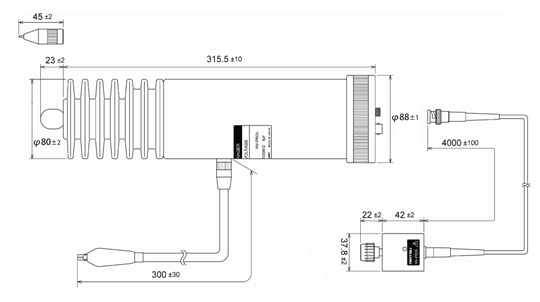

HV-P60A exterior view
High Voltage Probe HV-P30A
HV-P30A
- Oscilloscope measurement of high voltage waveforms up to 30kV DC and 40kV single pulse
- Frequency band DC to 50MHz broadband
- Maintenance free with the use of silicon rubber.
Guaranteed stable withstand voltage
High Voltage Probe HV-P30A specifications
| Item | HV-P30A | |
|---|---|---|
| Maximum input voltage | DC: 30kV, single pulse: 40kV (standard pulse wave: tip length = 1μs/tail length = 40μs) | |
| Frequency bandwidth | DC~50MHz －3dB | |
| Rise time | 7ns or less | |
| Input RC | R | 100MΩ±5% |
| C | 7pF or less | |
| Attenuation | 1000: 1 ±5% | |
| Waveform distortion | ±5% (10℃ to 35℃) * However, except for ringing and overshooting | |
| Cable length | Approx. 3m | |
| Connector type | BNC type | |
| Connectable Oscilloscope input RC |
R | 1MΩ |
| C | 10pF~40pF | |
| Size | See exterior view | |
| Operating temperature/Storage temperature | -10℃~50℃ | |
| Weight | Probe main unit: Approx. 1.3kg, overall: Approx. 2.5kg (including accessories) | |
| Accessories | Output cable (including matching box), clamping bracket, tip, earth lead, adjustment screwdriver, storage bag | |
| Option | High pressure probe stand (made-to-order product) SK-301 SK-301 is used for HV-P60A/HV-P60/HV-P30A/HV-P30. Change the probe receptacle up and down (for HV-P60A/HV-P60/HV-P30A/HV-P30) before mounting. |
|
High voltage probe HV-P30A maximum input voltage and frequency (sine wave)

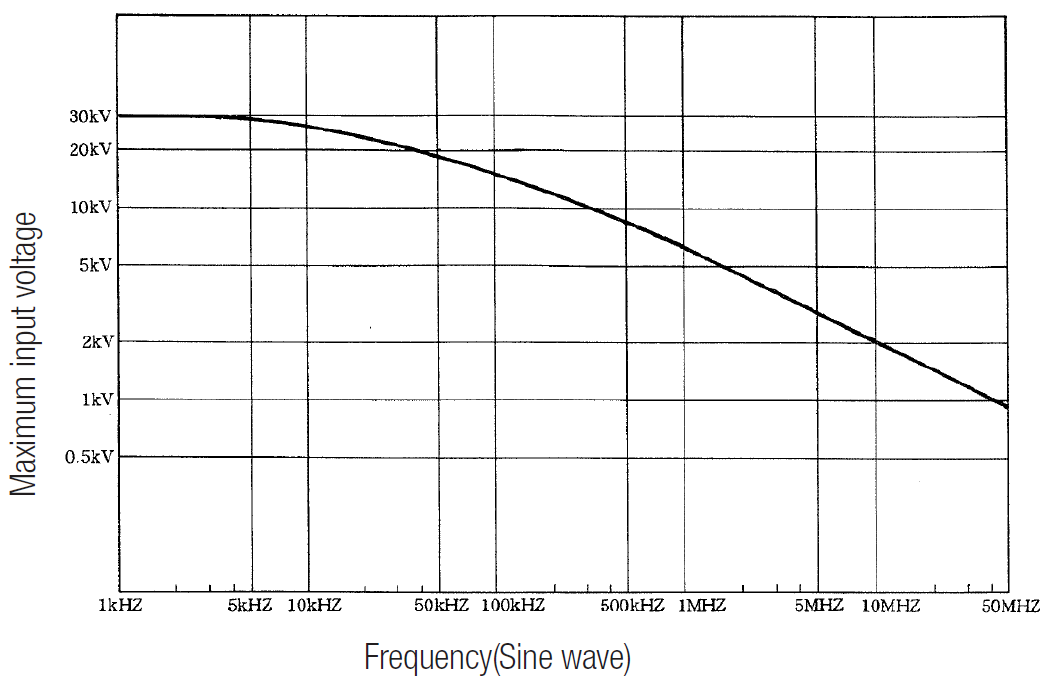

Characteristic curve
![Maximum input voltage and frequency (sine wave) [HV-P30]](/wp-content/uploads/2022/12/tme-accessories-voltage_probe-03_04-1-img05.gif)
Maximum input voltage and frequency (sine wave) [HV-P30]

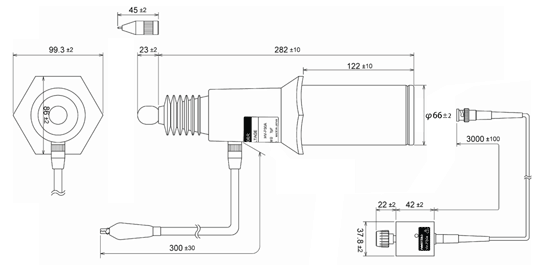

HV-P30A exterior view
