Universal Counter SC-7205A Options

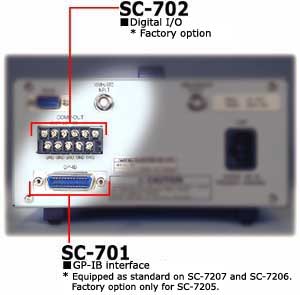

GPIB Interface (for SC-7205A) SC-701
The universal counters SC-7207H, SC-7206H, SC-7205H, and SC-7205A have a built-in SC-701 (SC-7207H, SC-7206H are standard equipment), which enables remote setting and external transmission of measurement result data related to measurement reset, measurement function, time base, calculation, etc. by an external GP-IB controller.
- Electrical and mechanical specifications are in accordance with IEEE 488.1.
- It has the following interface functions for GPIB. SH1, AH1, T5, L4, SR1, RL1, PP0, DC1, DT1, C0
- It has a REMOTE/LOCAL status LED indicator.
- The remote item is fully remote (except for some functions such as on/off of the power switch and remote related settings.)
| Equipped model | |
|---|---|
| SC-7207H | Standard equipment |
| SC-7206H | |
| SC-7205A SC-7205H |
Option (SC-701) |
Address settings
The following settings are possible through the SYSTEM menu of UTILITY.
- The 31 types of device addresses from 0 to 30 can be selected at will.
- One of CR+LF or LF can be selected as the delimiter.
Digital I/O (for SC-7207H, SC-7206H, SC-7205H, SC-7205A) SC-702
By integrating the SC-702 (digital I/O), the universal counter SC-7205A can control the start of measurement and output the comparator operation result (open collector). By connecting lamps, etc. to the exterior, you can easily visualize parts sorting and inspection results.
Timing chart
Control signal
| /TRIG C-MOS input | Start the measurement with an L pulse of 10ms or more during the /BUSY = Z period. The /TRIG signal during the /BUSY = L period is invalid. |
| /BUSY open collector output | Measuring L (output transistor on), non-measuring Z (output transistor off) |
| /HI, /LO, /GO Open collector output |
One place is L (output transistor on) according to the comparator operation result |
| Otherwise, Z (output transistor off) |
Output terminal maximum setting
- Withstand voltageDC50V
- Withstand current DC150mA
- Frequency responseDC~1kHz
Input terminal maximum rating
- Withstand voltageDC5V
- Frequency responseDC~1kHz
High stability reference oscillatorSC-703A
| Item | Performance |
|---|---|
| Oscillation frequency | ±0.05ppm +25°C as reference 0°C to +40°C range |
| Rise time | ±0.05ppm 10 minutes after power on based on the frequency 1 hour after power on |
| Change over time (/day) | ±0.02ppm Value after 72 hours based on 48 hours after power is turned on |
| Change over time (/month) | ±0.1ppm Value after one year based on 10 days after power is turned on |
Other options
| Order number | Appearance | |
|---|---|---|
| USB-RS converter SC-525 |
By adopting a cross cable and using the RS connector as a female connector, it is possible to directly connect the USB port and the measurement equipment. You can use an external controller (usually using a PC) to perform the same operations as when you manually control using button operation on the main unit. Not only operations, but also measurement result data collection is possible (interface specifications are the same as the standard RS-232). |  |
| BB-120C (120cm type) |
Coaxial cable(BNC - BNC) |  |
| BB-150C (150cm type) |
||
| Input coaxial cable B (BNC - crocodile port [black, red]) |  |
|
